Mechanical seals are essential for many machines and systems to prevent leaks. Whether you're new to mechanical seals or want to learn more, this guide will help you understand what they are, how they work, and why they matter.
What is a Mechanical Seal?
A mechanical seal is a device used to connect and seal two parts, preventing fluid from leaking out. It acts as a barrier between a rotating part (like a pump shaft) and a stationary part (like the pump housing).
Why Are Mechanical Seals Important?
Mechanical seals are important because they:
- Stop Leaks: They prevent fluids like water, oil, or chemicals from leaking out.
- Reduce Maintenance: A good seal reduces the need for frequent repairs.
- Improve Efficiency: They help keep the machine running smoothly by maintaining pressure and fluid levels.
- Enhance Safety: By stopping leaks, they help avoid dangerous spills and accidents.
How Do Mechanical Seals Work?
Mechanical seals use several parts to create a tight seal. Here’s a simple explanation:
- Rotating Part: This part spins with the shaft. It usually has a hard sealing surface.
- Stationary Part: This part stays still and is attached to the pump housing. It has a softer sealing surface.
- Elastomer: This is a flexible material, like rubber, that helps absorb vibrations and misalignments.
- Spring: A spring pushes the sealing surfaces together to keep them in contact.
- Gasket/O-Ring: These ensure there are no leaks between the seal parts.
Types of Mechanical Seals
There are different types of mechanical seals for various uses:
- Pusher Seals: These seals use a spring to push the sealing surfaces together. They work well in many conditions.
- Non-Pusher Seals: These seals use a metal bellows instead of a spring. They are good for high-temperature situations.
- Cartridge Seals: These are pre-assembled units that are easy to install and reduce installation errors.
- Dry Running Seals: These seals can work without lubrication and are used where fluids can’t be allowed to leak.
Where Are Mechanical Seals Used?
Mechanical seals are used in many industries, including:
- Pumps: To prevent fluid from leaking out.
- Compressors: To keep gases contained.
- Mixers: To stop mixing materials from leaking.
- Agitators: To prevent leaks of the agitated substance.
How to Take Care of Mechanical Seals
To keep mechanical seals working well, follow these tips:
- Regular Checks: Look for wear and tear often.
- Cleanliness: Keep the seal and surrounding area clean.
- Proper Installation: Follow the manufacturer’s instructions to avoid damage.
- Lubrication: Make sure seals are properly lubricated to reduce friction.
Common Problems and Solutions
Mechanical seals can sometimes have problems. Here are some common issues and how to fix them:
- Leakage: Look for damaged sealing surfaces or worn elastomers.
- Excessive Wear: Ensure the seal is aligned correctly and not under too much pressure.
- Overheating: Make sure there is enough lubrication and cooling.
Advanced Features of Mechanical Seals
Modern mechanical seals come with several advanced features to improve performance:
- Double Seals: These have two sets of sealing surfaces, providing extra protection against leaks, especially in hazardous or high-pressure environments.
- Split Seals: These seals can be installed without dismantling the equipment, making maintenance easier and quicker.
- Gas-Lubricated Seals: These seals use a gas (usually air) to lubricate the sealing surfaces, which is ideal for applications where liquid lubrication is not suitable.
How to Choose the Right Mechanical Seal
Selecting the right mechanical seal for your application involves considering several factors:
- Fluid Type: The chemical compatibility of the seal materials with the fluid being sealed is crucial.
- Temperature: Ensure the seal can withstand the operating temperatures.
- Pressure: The seal must handle the pressure conditions.
- Shaft Size: The seal must fit the shaft diameter and be compatible with the rotational speed.
- Environmental Conditions: Consider factors like vibration, axial movement, and contamination.
Innovations in Mechanical Seal Technology
Recent innovations have significantly improved the reliability and efficiency of mechanical seals:
- Magnetic Seals: These use magnetic forces to create a tight seal without physical contact, reducing wear and extending seal life.
- Composite Materials: New materials offer better resistance to extreme temperatures, pressures, and corrosive fluids.
- Smart Seals: These incorporate sensors and monitoring systems to provide real-time data on seal performance, helping predict failures and proactively schedule maintenance.

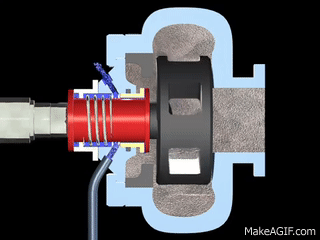

Mechanical Seal Working Principle
Conclusion
Mechanical seals are crucial components in many industrial applications, ensuring machines run efficiently and safely. By understanding their basic functions, types, and maintenance needs, you can better appreciate their role and ensure they perform optimally in your systems. Regular inspection, proper installation, and choosing the right seal for your application will help extend the life of your mechanical seals and keep your equipment running smoothly.
