Multi-stage centrifugal pumps are vital components in various industries, providing the necessary pressure and flow for many applications. However, like any mechanical equipment, they are prone to issues that can hinder their performance. This guide aims to help you identify and resolve common problems associated with multi-stage centrifugal pumps, including symptoms, probable causes, and solutions.
Table of Contents
- Introduction to Multi-Stage Centrifugal Pumps
- Common Parts and Their Functions
- Common Problems and Solutions
- Pump Fails to Start
- Insufficient Flow or Pressure
- Excessive Noise or Vibration
- Overheating
- Seal and Bearing Failures
- Measurement and Diagnostic Tools
- Preventative Maintenance Tips
- Parts Exploded View
1. Introduction to Multi-Stage Centrifugal Pumps
Multi-stage centrifugal pumps consist of multiple impellers (stages) mounted on a single shaft. These stages increase the pressure of the pumped fluid progressively, making them suitable for high-pressure applications.
2. Common Parts and Their Functions
Understanding the main components of a multi-stage centrifugal pump is crucial for effective troubleshooting:
- Impellers: Increase the fluid's pressure.
- Shaft: Transfers rotational energy from the motor to the impellers.
- Seals: Prevent leakage of the pumped fluid.
- Bearings: Support the shaft and reduce friction.
- Casings: Enclose the pump components and direct the flow of fluid.
- Couplings: Connect the pump to the driving motor.
3. Common Problems and Solutions
Pump Fails to Start
Symptoms:
- No motor sound or activity.
- No fluid flow.
Probable Causes:
- Electrical issues (faulty wiring, blown fuses).
- Motor failure.
- Blocked impeller.
Solutions:
Check Electrical Connections:
- Ensure all connections are secure and free of corrosion.
- Replace blown fuses and reset circuit breakers if necessary.
Inspect the Motor:
- Test the motor for continuity and replace it if defective.
Clear Blockages:
- Remove the pump casing and inspect the impeller for debris.
- Clean or replace the impeller as needed.
Insufficient Flow or Pressure
Symptoms:
- Lower than expected flow rate.
- Reduced discharge pressure.
Probable Causes:
- Impeller wear or damage.
- Clogged suction or discharge lines.
- Air leaks in suction line.
Solutions:
Examine Impellers:
- Inspect for wear and tear.
- Replace damaged impellers.
Check Piping:
- Clear any blockages in the suction or discharge lines.
- Ensure pipes are properly sized and installed.
Seal Air Leaks:
- Tighten all fittings and connections.
- Use appropriate sealing materials for any detected leaks.
Excessive Noise or Vibration
Symptoms:
- Loud or unusual noises.
- Vibrations felt in the pump or surrounding structure.
Probable Causes:
- Misalignment of pump and motor.
- Worn bearings.
- Cavitation.
Solutions:
Align the Pump and Motor:
- Use alignment tools to ensure proper alignment.
- Adjust as necessary.
Inspect Bearings:
- Check for wear and replace bearings if needed.
- Lubricate bearings according to the manufacturer’s recommendations.
Address Cavitation:
- Reduce pump speed or adjust the flow rate.
- Ensure adequate suction head and eliminate any obstructions.
Overheating
Symptoms:
- High temperature readings.
- Pump surface is hot to the touch.
Probable Causes:
- Insufficient cooling.
- Bearing or seal friction.
- Overloading.
Solutions:
Improve Cooling:
- Ensure adequate ventilation around the pump.
- Check and maintain coolant levels if applicable.
Reduce Friction:
- Inspect and lubricate bearings and seals.
- Replace any worn components.
Prevent Overloading:
- Check the pump’s operating conditions against its specifications.
- Adjust the flow or pressure settings to within recommended limits.
Seal and Bearing Failures
Symptoms:
- Leaking fluid.
- Increased noise and vibration.
Probable Causes:
- Wear and tear.
- Improper lubrication.
- Misalignment.
Solutions:
Replace Worn Seals and Bearings:
- Regularly inspect and replace as part of preventative maintenance.
- Use high-quality replacement parts.
Ensure Proper Lubrication:
- Follow the manufacturer’s lubrication schedule.
- Use the recommended lubricants.
Correct Alignment Issues:
- Regularly check and adjust alignment.
4. Measurement and Diagnostic Tools
Effective troubleshooting often requires the use of diagnostic tools to measure and identify issues accurately:
- Vibration Analyzer: Detects and measures vibrations to identify imbalances and misalignment.
- Thermometer/Temperature Gun: Measures the temperature of the pump components to identify overheating.
- Pressure Gauge: Monitors the pressure at various points in the pump system to ensure it meets specifications.
- Flow Meter: Measures the flow rate to verify pump performance.
- Electrical Multimeter: Tests electrical connections and motor functionality.
5. Preventative Maintenance Tips
Regular maintenance is key to preventing pump problems and ensuring long-term reliability:
- Routine Inspections: Regularly check all components for signs of wear, damage, and proper function.
- Scheduled Lubrication: Keep bearings and other moving parts well-lubricated according to the manufacturer's guidelines.
- Cleanliness: Keep the pump and surrounding area clean to prevent debris from entering the system.
- Alignment Checks: Regularly verify and adjust the alignment of the pump and motor.
- Seal Replacement: Periodically replace seals to prevent leaks and maintain efficiency.
By following this guide and performing regular maintenance, you can minimize downtime and extend the lifespan of your multi-stage centrifugal pumps.

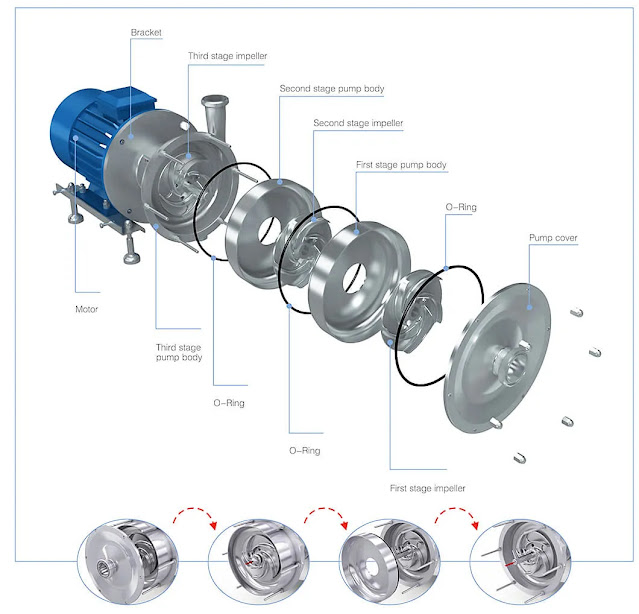

Multi-Stage Centrifugal Pump Parts Exploded View
